Benefits of MetalVest™ for Mining Operations
MetalVest™ high head submersible dewatering pumps use a full metal build. No urethane or rubber lined parts mean a longer life.
The MetalVest High Head series is a submersible dewatering pump suitable for underground mining, open cut mining, pit dewatering, industrial dewatering, deep well and quarry dewatering. It has a maximum head of 83 m. The all metal design together with the impeller constructed of Hrc, provide a longer wear life which extends the efficacy of the pump and reduces repair costs.

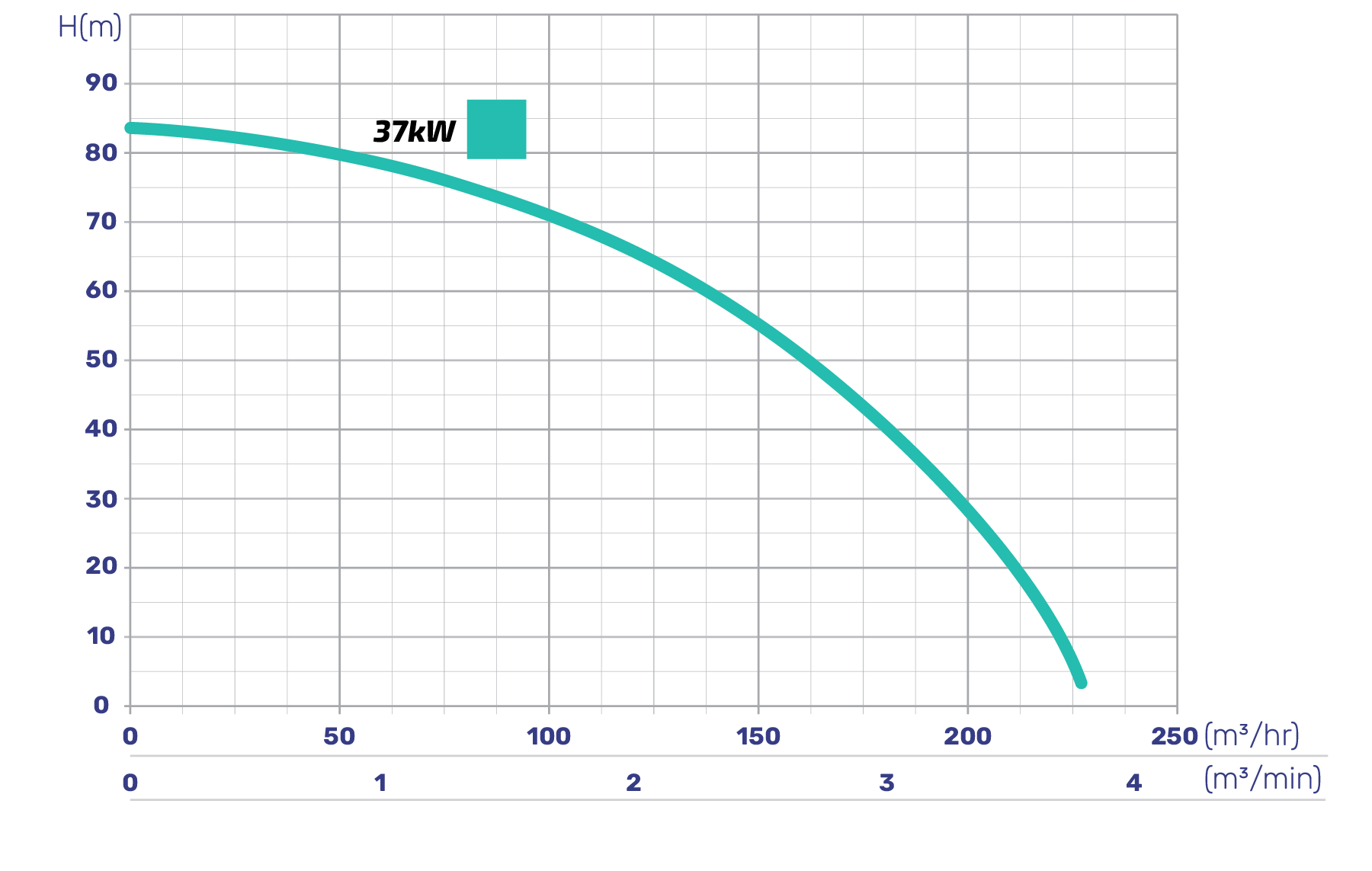

Power Curve (50 & 60 Hz)
Specifications
Scroll sideways to see the complete table
| Model | kW (Hp) | Voltage (Hz) | Discharge | Solids Passage in mm | Max Head in m (ft) | Max Flow l/s | Max Diameter mm | Height mm | Weight kg |
|---|---|---|---|---|---|---|---|---|---|
| MPD2A0308 | 37 (50) | 415 (50) | 6" | 6 | 83 (260) | 60 | 530 | 1072 | 570 |
| MPD3A0308 | 37 (50) | 1000 (50) | 6" | 6 | 83 (260) | 60 | 530 | 1072 | 570 |
| MPD4B0308 | 37 (50) | 480 (60) | 6" | 6 | 83 (260) | 60 | 530 | 1072 | 570 |
| MPD5B0308 | 37 (50) | 600 (60) | 6" | 6 | 83 (260) | 60 | 530 | 1072 | 570 |
| MPD3B0308 | 37 (50) | 1000 (60) | 6" | 6 | 83 (260) | 60 | 530 | 1072 | 570 |
| MPE2A0308 | 75 (100) | 415 (50) | 6" | 8 | 132 (425) | 50 | 550 | 1630 | 888 |
| MPE3A0308 | 75 (100) | 1000 (50) | 6" | 8 | 132 (425) | 50 | 550 | 1630 | 888 |
| Motor Specifications | |
|---|---|
| Type | Submersible Continuous Duty |
| Pole | 2-Pole |
| Insulation Class | B Class |
| Motor Power Details | 1000V, 415V 50Hz 480V, 600V & 1000V 60Hz |
| Max Liquid Temp | IP-68 |
| Protection Class | Fluid at 40º C |
| Max Submergence | 30 m |
| Material: Outer Jacket | Steel |
| Material: Shaft | Stainless Steel |
| Material: Cable | Supplied on Request |
| Material: Seal | Tc-Sic / Sic-Sic |
| Pump Specifications | |
|---|---|
| Impeller | Closed Impeller, High Chrome |
| Wear Plate | High Chrome |
| Mechanical Seal | Tc-Sic / Sic-Sic |
| Bearing | Heavy duty bearings |
| Volute Casing | Ductile iron hardened |
